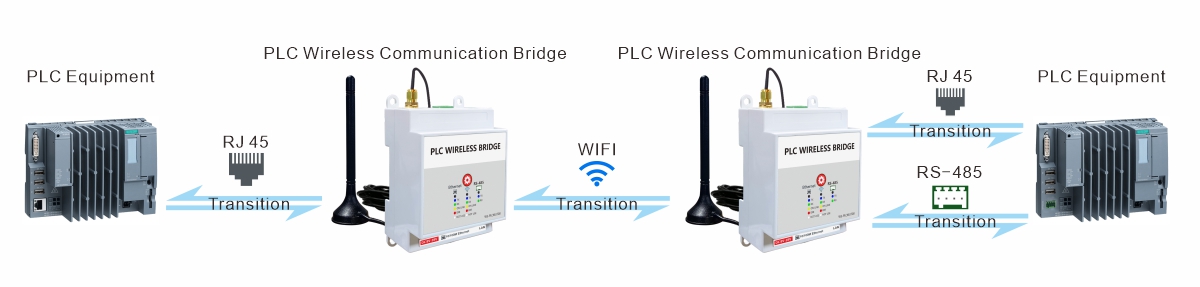

WENSHING launched the PLC Wireless Communication Bridge in June 2024. This product addresses the issues associated with PLCs caused by the inconvenience of wired network or RS-485 data communication cabling, or by communication failures due to voltage differences between devices at different locations. Using this product makes it easy to resolve these problems.
This product can convert a wired network TCP/IP RJ45 connection to a WiFi network, or an RS-485 interface to WiFi or a wired network. Additionally, it supports long-distance LoRa communication. All these interfaces are interchangeable, effectively solving PLC communication issues.
The PLC Wireless Communication Bridge WS-PLCMU700 can effectively resolve PLC communication issues, making it an ideal solution for industrial control, building automation, and other fields.

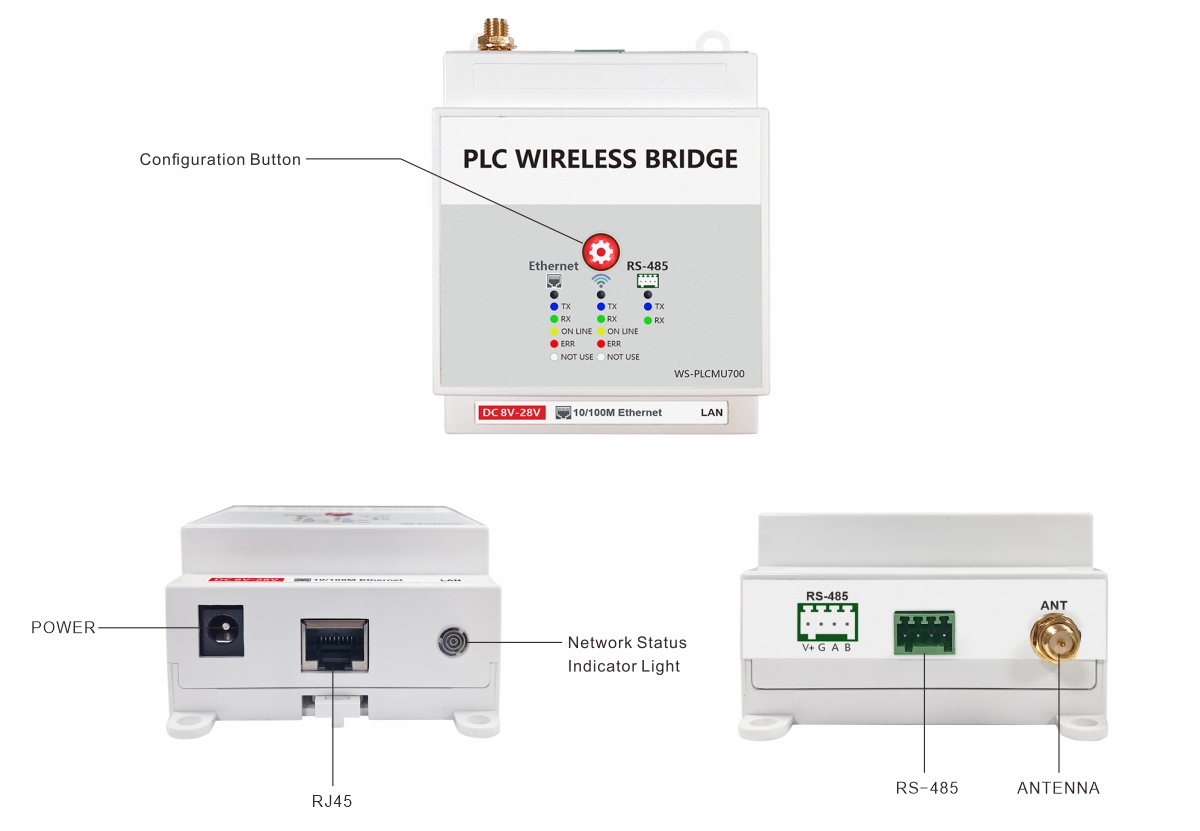

INTERFACE
PRODUCT FEATURES
• Supports wired network TCP/IP RJ45 connection, converting to WiFi network or RS-485 interface.
• Supports RS-485 conversion to WiFi or wired network and vice versa.
• Supports 3KM long-distance wired network conversion, or RS-485 to wireless communication LoRa, and vice versa.

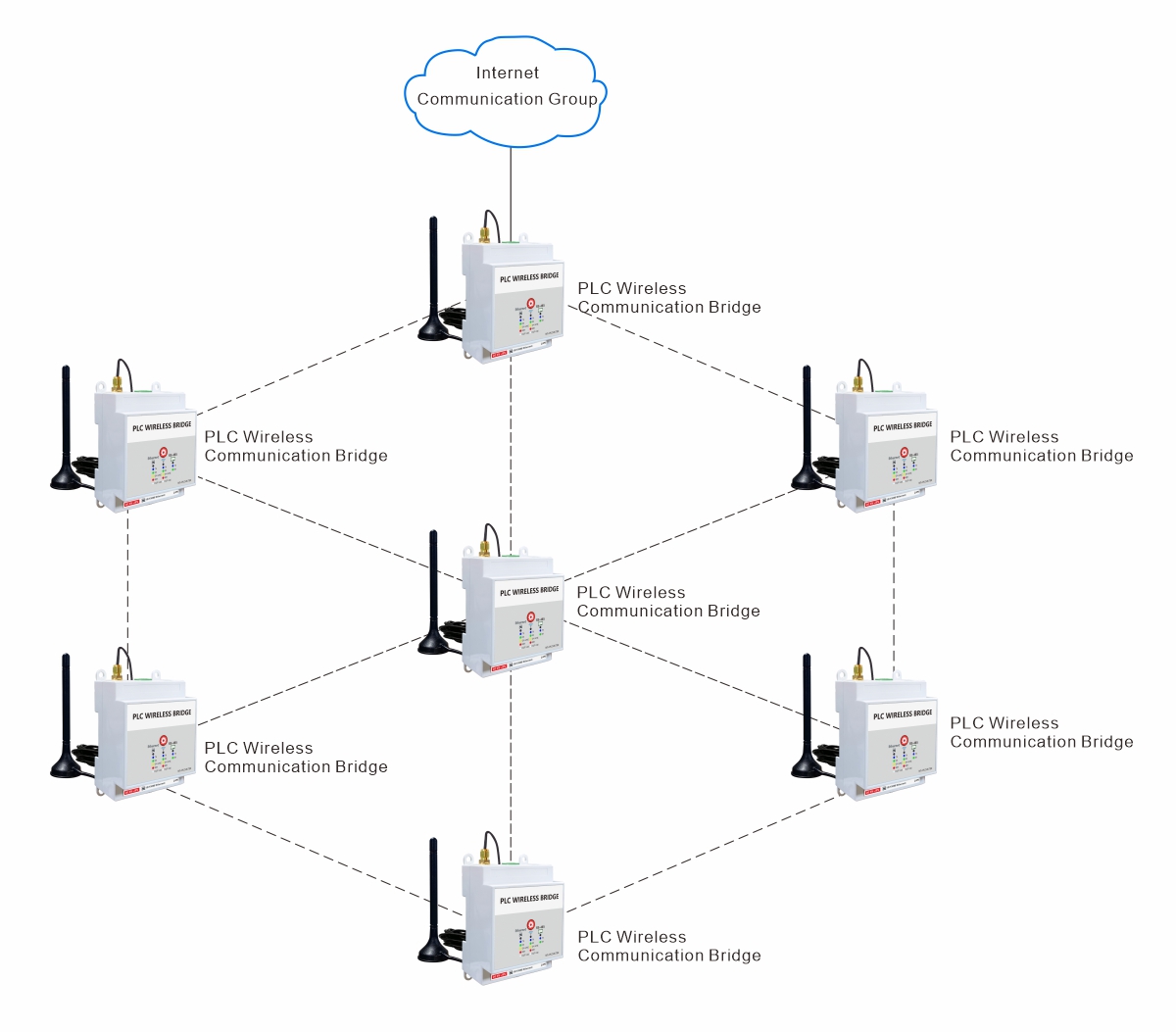

• Self-Networking Functionality: Each device can autonomously form a group for mutual communication.
• Resolving PLC Communication Issues

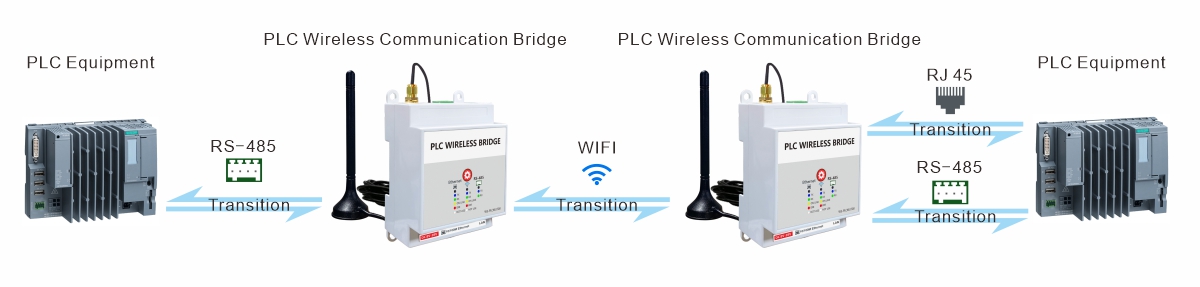

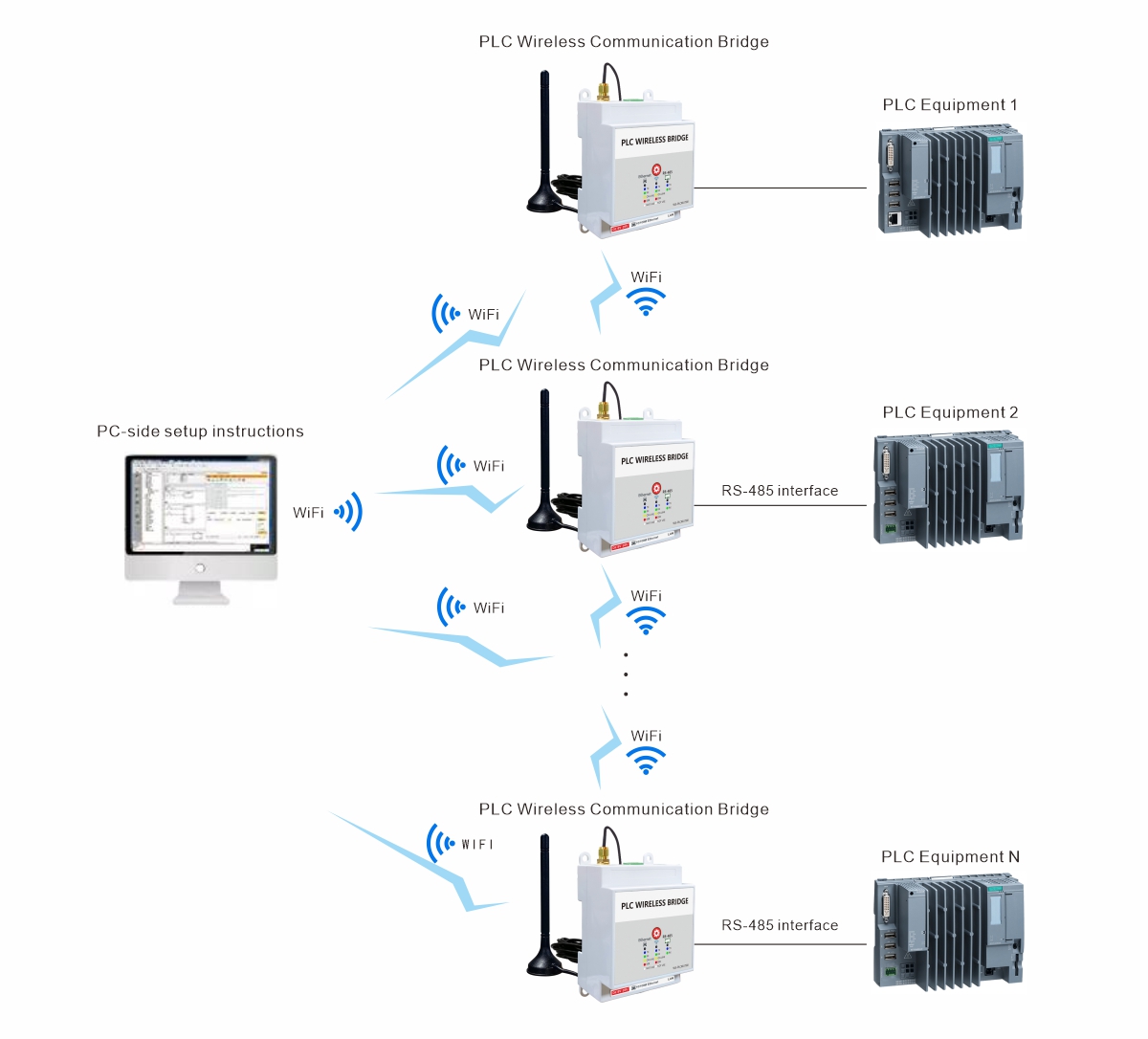

WiFi Communication

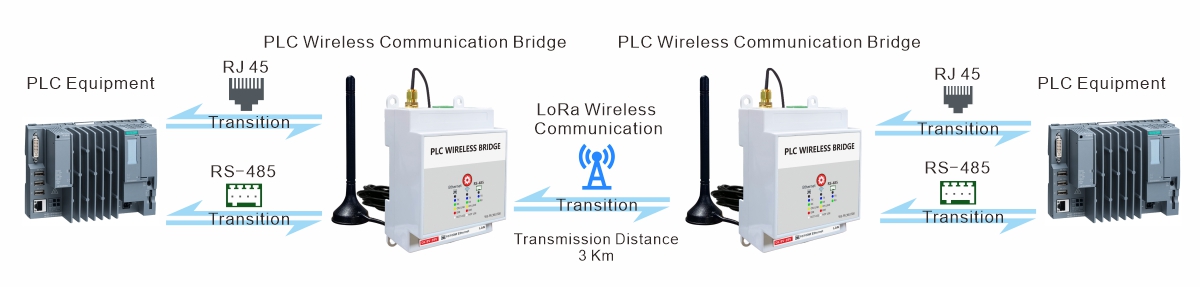

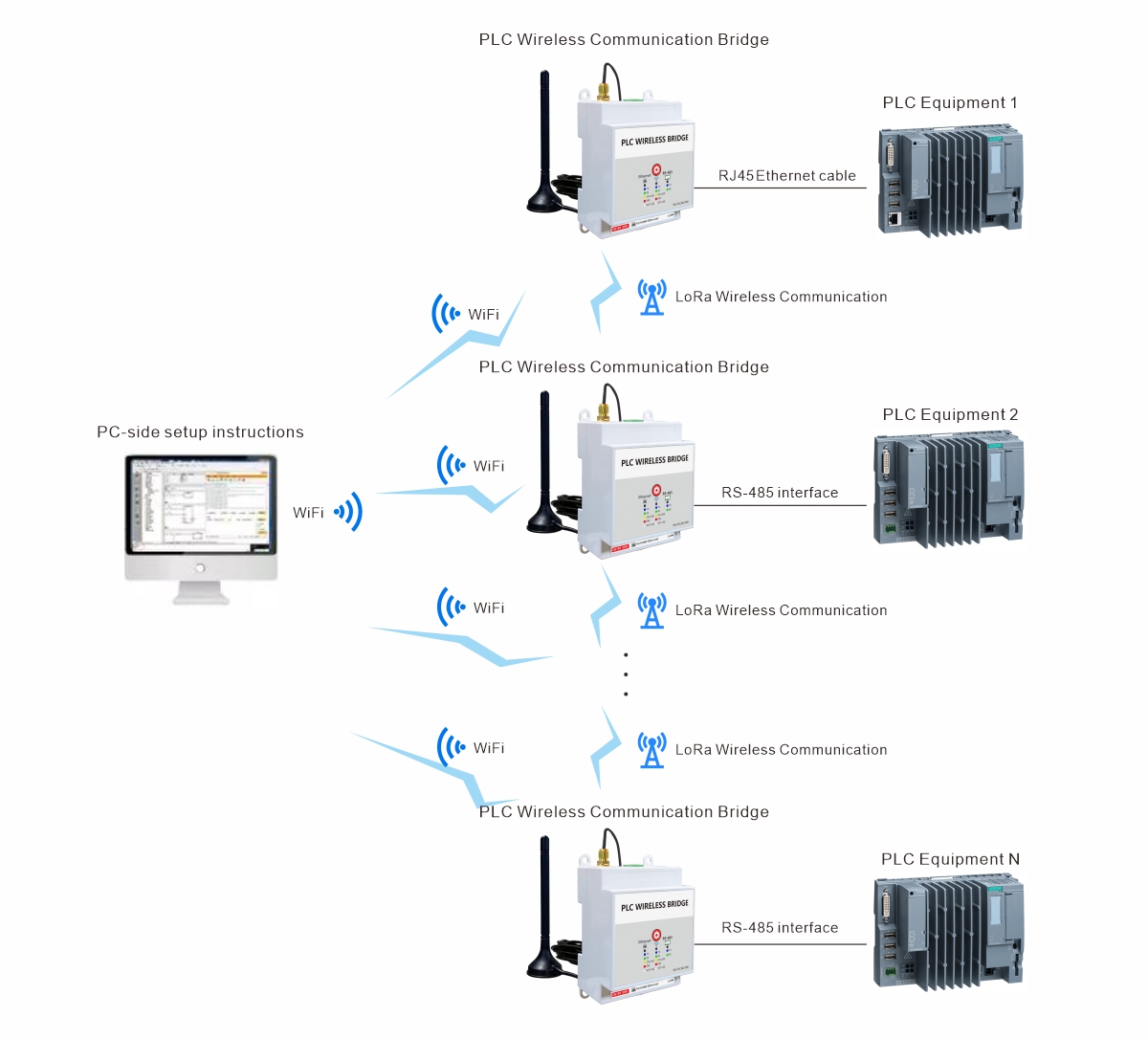

LoRa Long-Range Communication

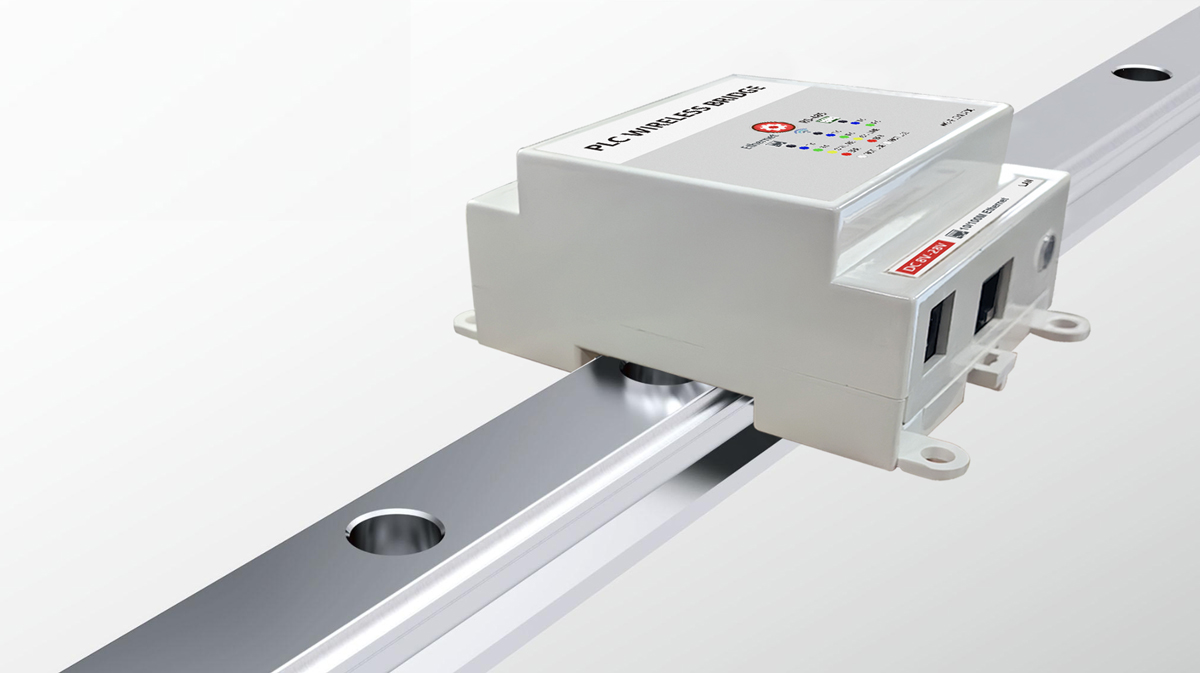

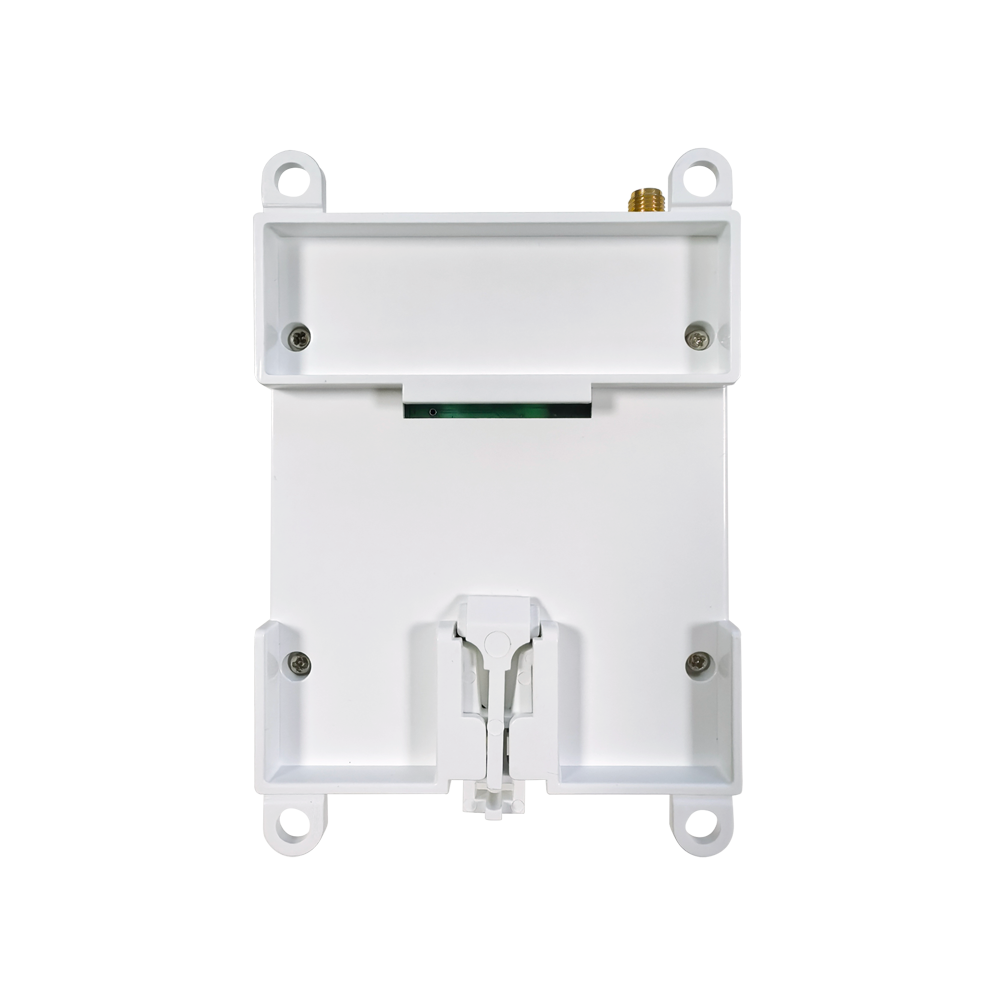

Supports rail mounting
PRODUCT ADVANTAGES
• Supports PoE (Power over Ethernet), allowing power supply through the Ethernet cable
• Eliminates wiring troubles: Transmits data wirelessly, avoiding the need for complex wiring installations.
• Bridges voltage differences: Stabilizes communication across devices at different locations with varying voltages.
• Multiple conversion modes: Supports various interface conversions to meet different application needs.
• Long-distance transmission: Supports long-range LoRa transmission, suitable for expansive areas.
• Supports Modbus communication protocol
APPLICATION SCENARIOS

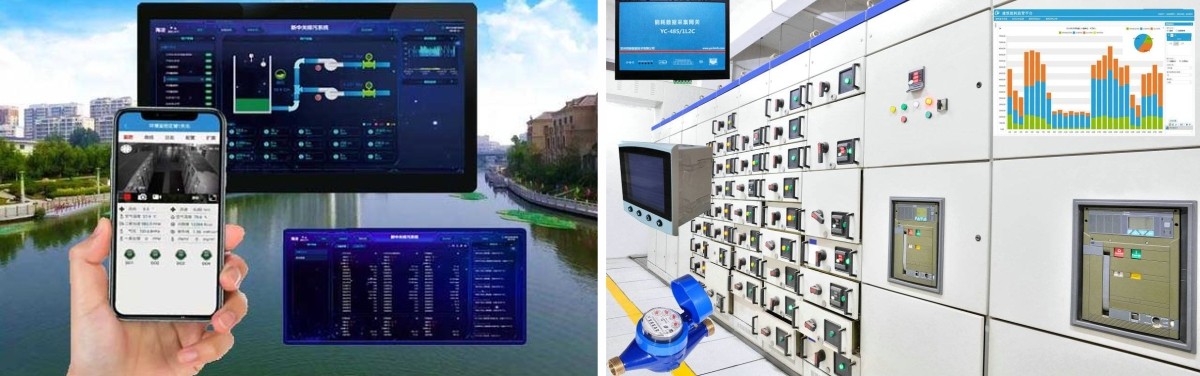

Monitoring and Control
The PLC Wireless Communication Bridge can be used to establish wireless connections, enabling monitoring and control of devices and systems. This is particularly useful in industrial settings, where it reduces wiring costs and simplifies facility management.
Data Collection and Analysis
Through the PLC Wireless Communication Bridge, data generated by remote devices and sensors can be collected for real-time or historical data analysis. This data is crucial for optimizing production processes and ensuring quality control.
Energy Management and ConservationThe PLC Wireless Communication Bridge can be used to monitor and control energy usage, such as electricity consumption and the operational efficiency of energy equipment. Through these applications, more effective energy management can be achieved, leading to cost savings and reduced energy waste.
Equipment Health Monitoring
For critical equipment and machinery such as industrial and manufacturing equipment, the PLC Wireless Communication Bridge can be used to monitor the operational status and health of devices. This capability supports proactive maintenance, reduces downtime, and enhances production efficiency.
Environmental Monitoring and Control
In the field of environmental monitoring, the PLC Wireless Communication Bridge can be used to monitor environmental parameters such as air quality, water quality, temperature, and others. This data is crucial for environmental protection and safety management in industrial and urban facilities.
Security Monitoring and Alarm Systems
The PLC Wireless Communication Bridge can also be integrated *** security systems for monitoring and alarms. For instance, it can monitor intrusion detection systems, fire alarm systems, and promptly notify relevant personnel in case of emergencies.
SETUP INSTRUCTIONS
PRODUCT SPECIFICATIONS
• Transmission Distance: Depends on the environment, can reach up to several kilometers
• Transmission Rate: Up to 115200 bps
• Operating Frequencies: 2.4GHz, LoRa 470MHz/920MHz
• Power Supply: DC 12V/24V

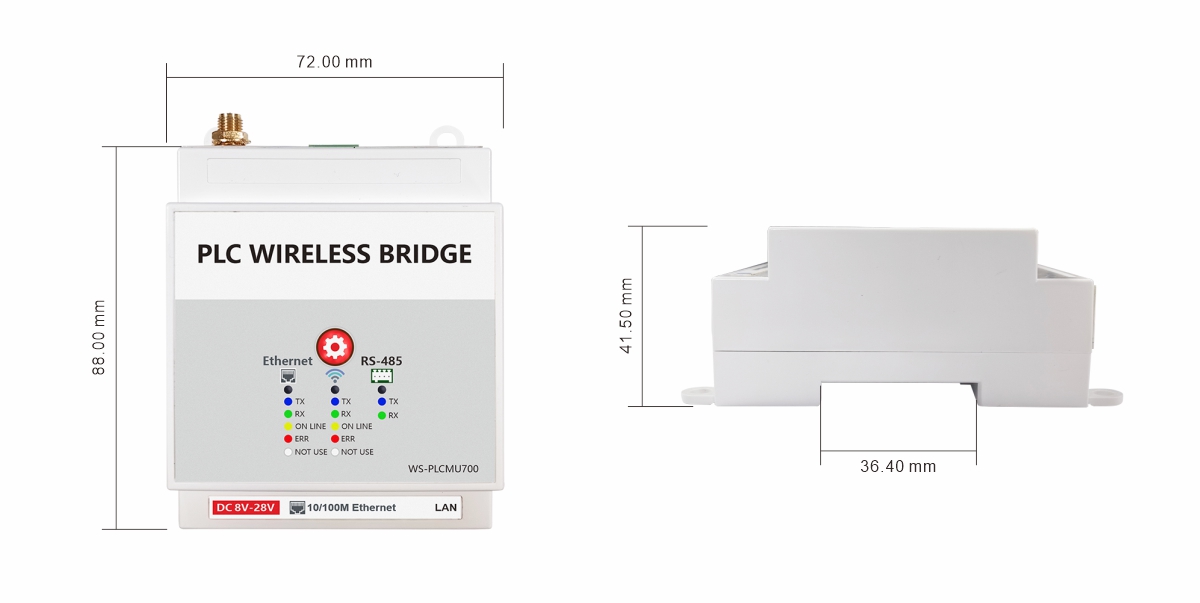

• Product Dimensions: 72*88*41.5mm Track width 36.4mm

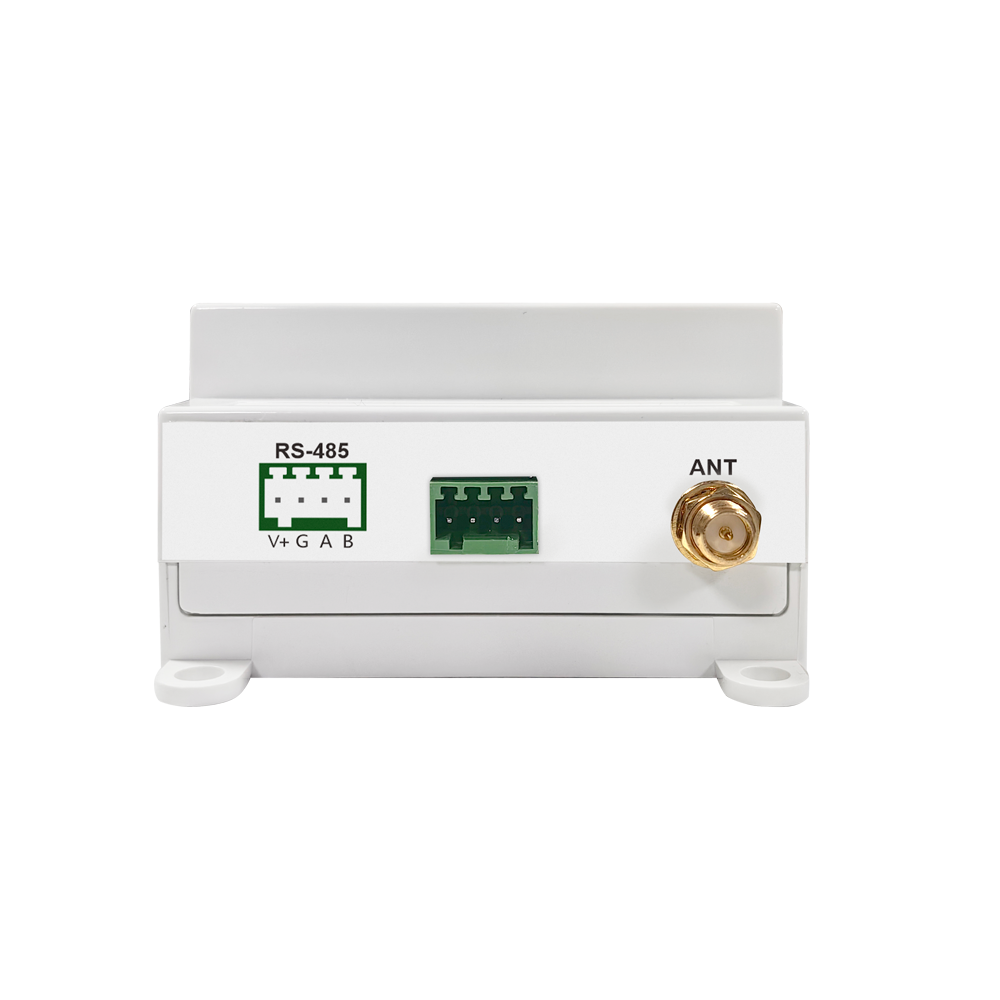

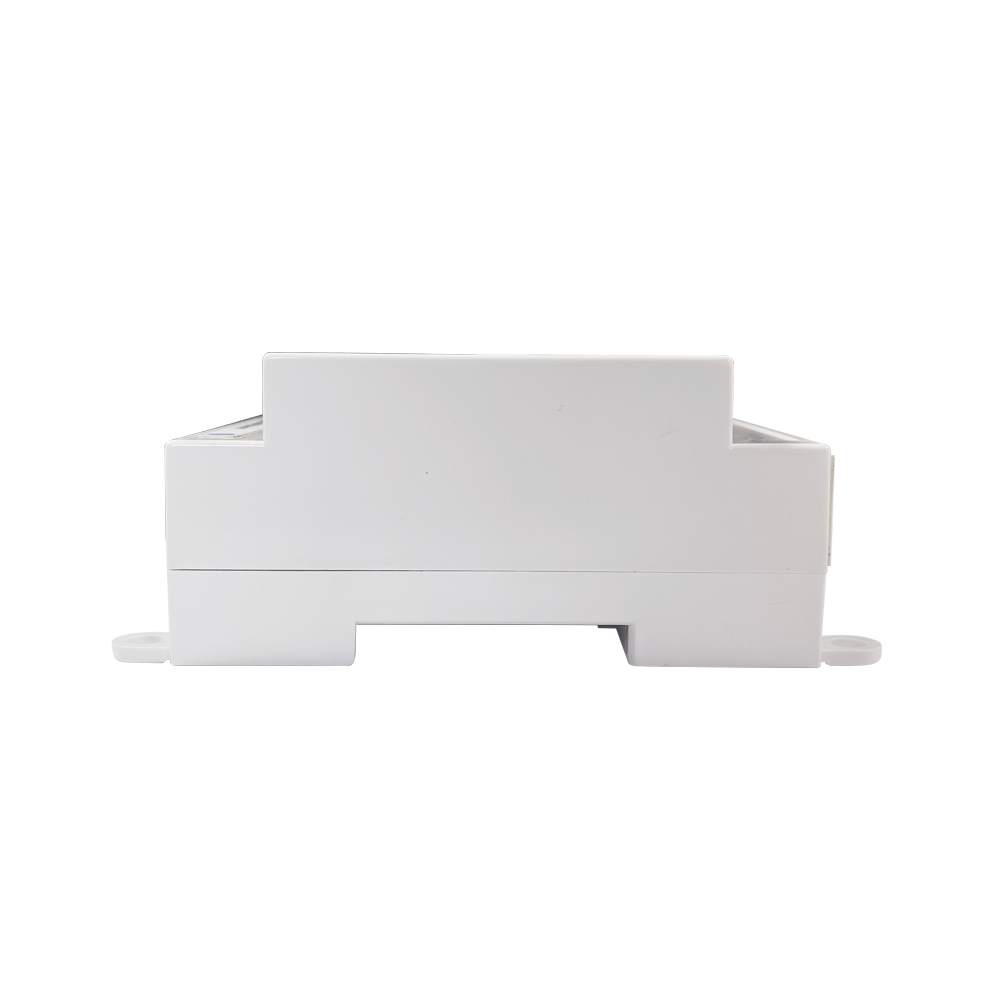

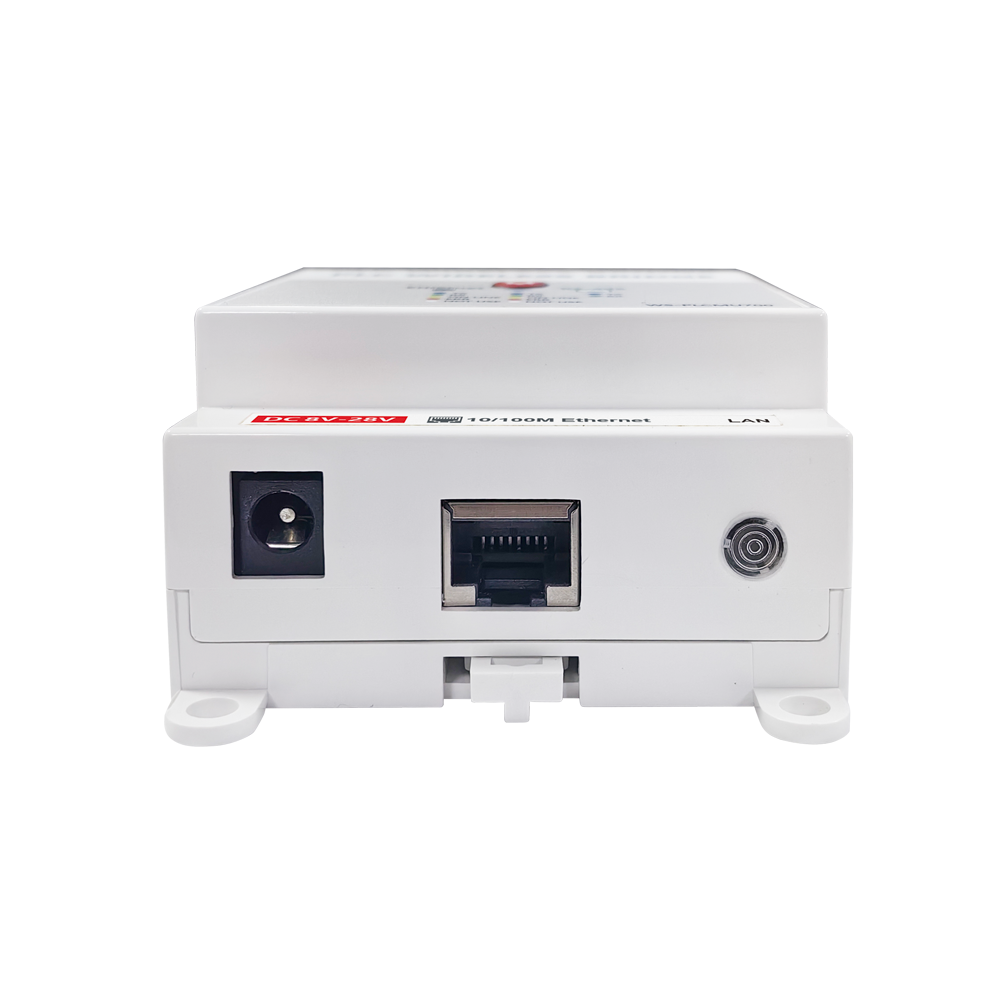

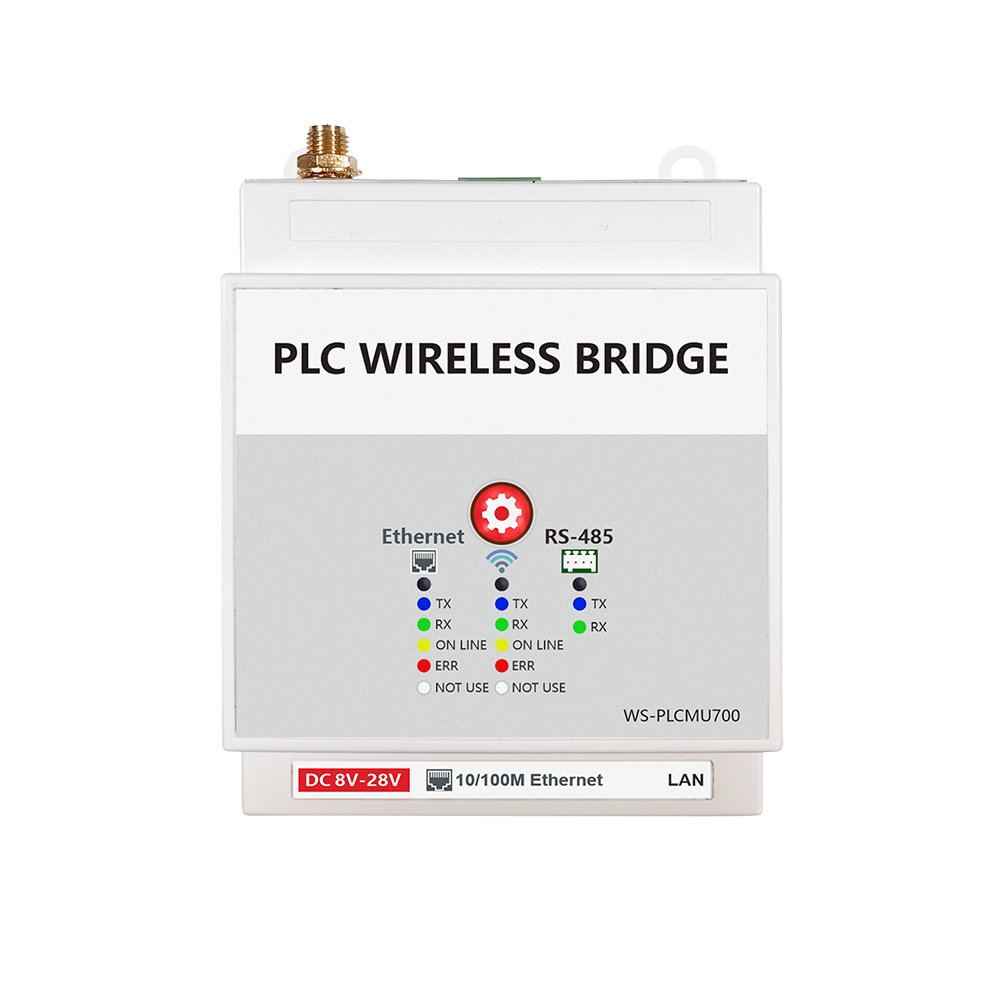

PRODUCT APPEARANCE
WIRING METHOD

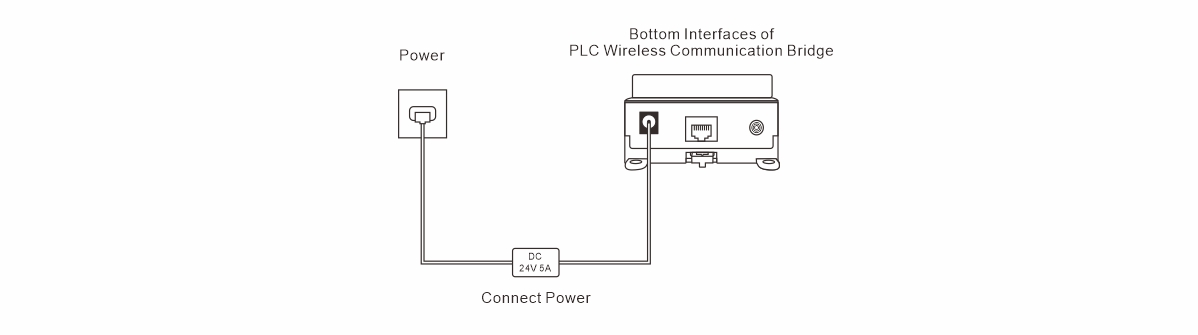

Power Wiring Diagram

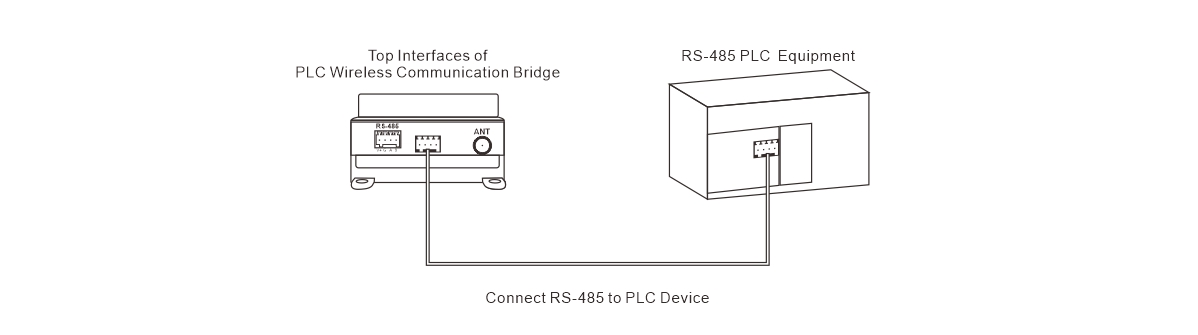

PLC RS-485 Wiring Diagram

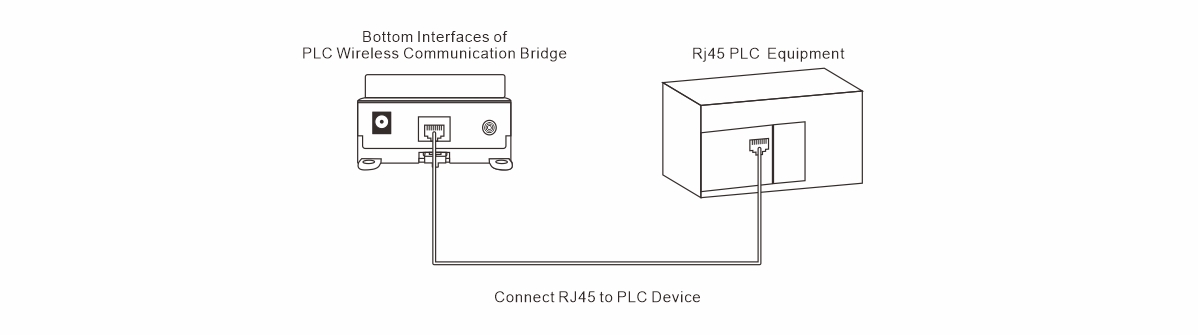

PLC Network RJ45 Wiring Diagram

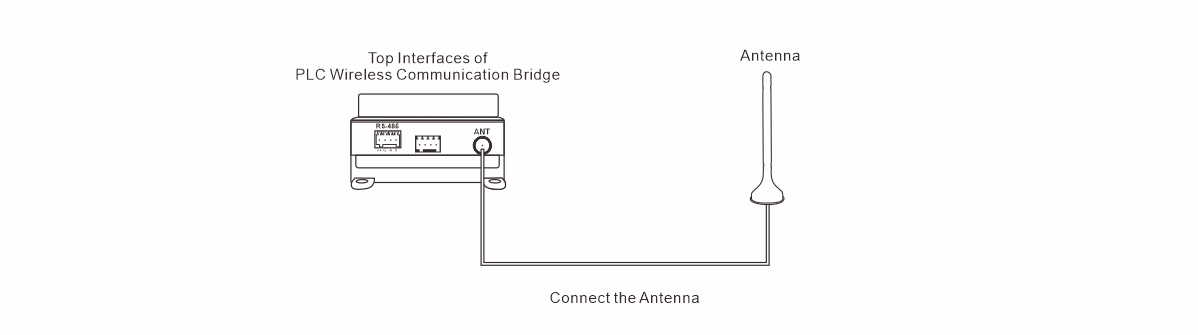

Connect the Antenna
